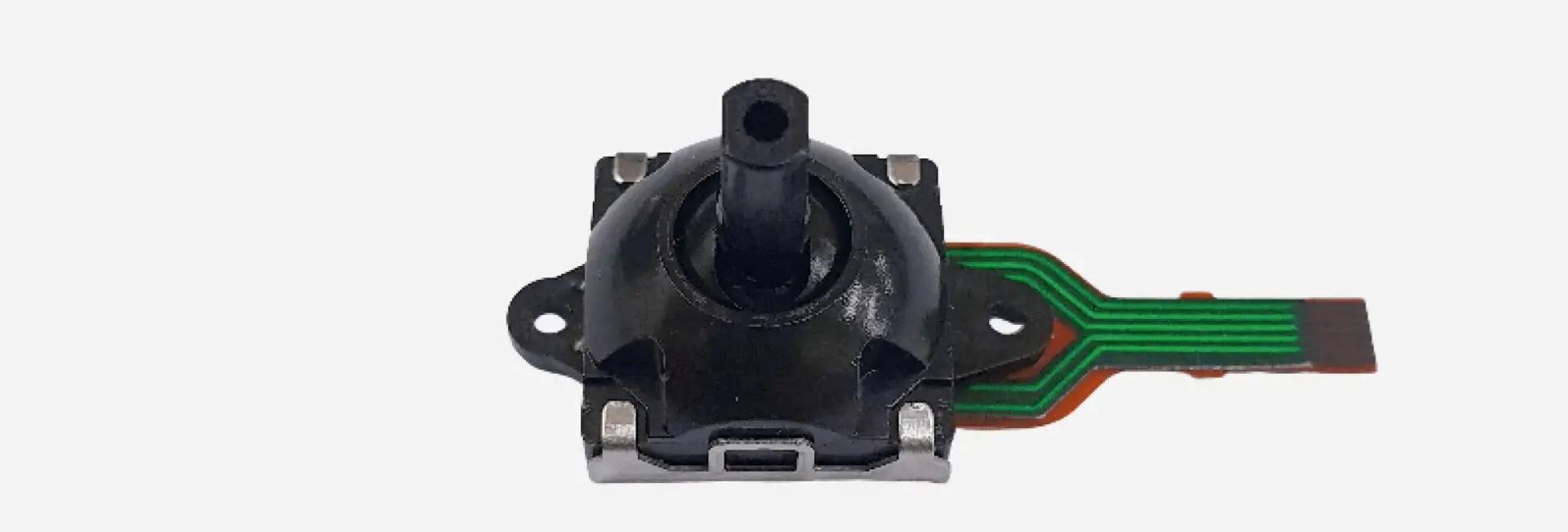

Carbon Film Joystick FJP04K
FUGO Electronics shares with you: We officially launch the new product JOYSTICK SWITCH FJP04K!
FJP04K Carbon Film JoystickWith its small size and features such as a built-in switch, it is suitable for most JOYSTICK applications and often includes a switch for multifunctional connectivity. The FJP04K JOYSTICK SWITCH not only addresses current needs but also represents our commitment to future technology and personalized services. We firmly believe that everyone should have a unique experience, which is why we are dedicated to providing customized solutions.
Product Features:
- With a small size of 14.03mm x 13.7mm
- with switch function
- Soft Board Design
Application Examples:
- The direction of adjustment or corresponding functions of JOYSTICK in the eSports industry.
- Medical Equipment Precision Quantitative Stacking Rod
- Drone Direction Control
Specification:
Electrical Characteristics |
|
| Total Resistance | 5KΩ~100KΩ |
| Total Resistance Tolerance | ± 30% |
| Resistance Linear | B Linear |
| Rated Power | Linear B: 0.0125W |
| Voltage Resistance | At AC 250V, hold for one minute. |
| Insulation Resistance | Greater than 100MΩ, maintained at DC 250V for one minute |
| Rated Voltage | DC 5.0V |
Mechanical Characteristics |
|
| Operating Direction | Cyclic Operation |
| Detent Strength | 3Kgf.cm or more for 3 seconds. |
| Operating Angle | 46° |
| Pull Strength | Thrust: Above 98N for 3 seconds. Tension: Above 50N for 3 seconds. |
| Operating Torque | 7±5/-3mN.mf |
| Return Accuracy | ±5° |
| Durability | |
| Operating Life | 2 million times. |
Tactile Switch Characteristics |
|
| Rated Power | 12 V DC, 5mA |
| Operating Torque | 6±2.5N |
| Travel | 0.35+0.5/-0.25mm |
| Operating Life | 5,000,000 times |
